VAG TSI EA888 is38 Calibrations
We are the highest 5 star rated tuning firm in the entire UK and continue to grow daily.
Tuning guide for ea888 is38 platform
We have done extensive research and development on the VAG EA888 engine over the past 10 years, on all 3 turbo variants found across the the entire VAG range in form of IS12, IS20 & IS38. Our inhouse development has allowed us to produce some of the market leading calibration across all software variants commonly found on this platform. Both the 1.8 TSI & 2.0 TSI newer generations of engines are the successor of the EA113. Housing a completely different strategy of tuning now moving on from the simple BOSCH MED9 control unit to the more complex Siemens Simos18.
IS38 Turbo Calibrations 272/280/290/300/310BHP
Stage 1 calibration:
350-370BHP & 500-520NM
Mandatory:
- Completely stock vehicle (Zero modifications required)
Optional Additions:
- Induction kit (R600 Recommended)
- Catback exhaust system
- Turbo muffler delete
- DSG gearbox map (Auto models only)
Stage 2 calibration:
400BHP & 550-560NM
Mandatory:
- Downpipe including decat or sports cat exhaust (T&C's Section 3)
- Induction kit (R600 recommended)
- Turbo muffler delete
- Uprated intercooler
- DSG gearbox map (Auto models only)
- Uprated clutch (Manual models only)

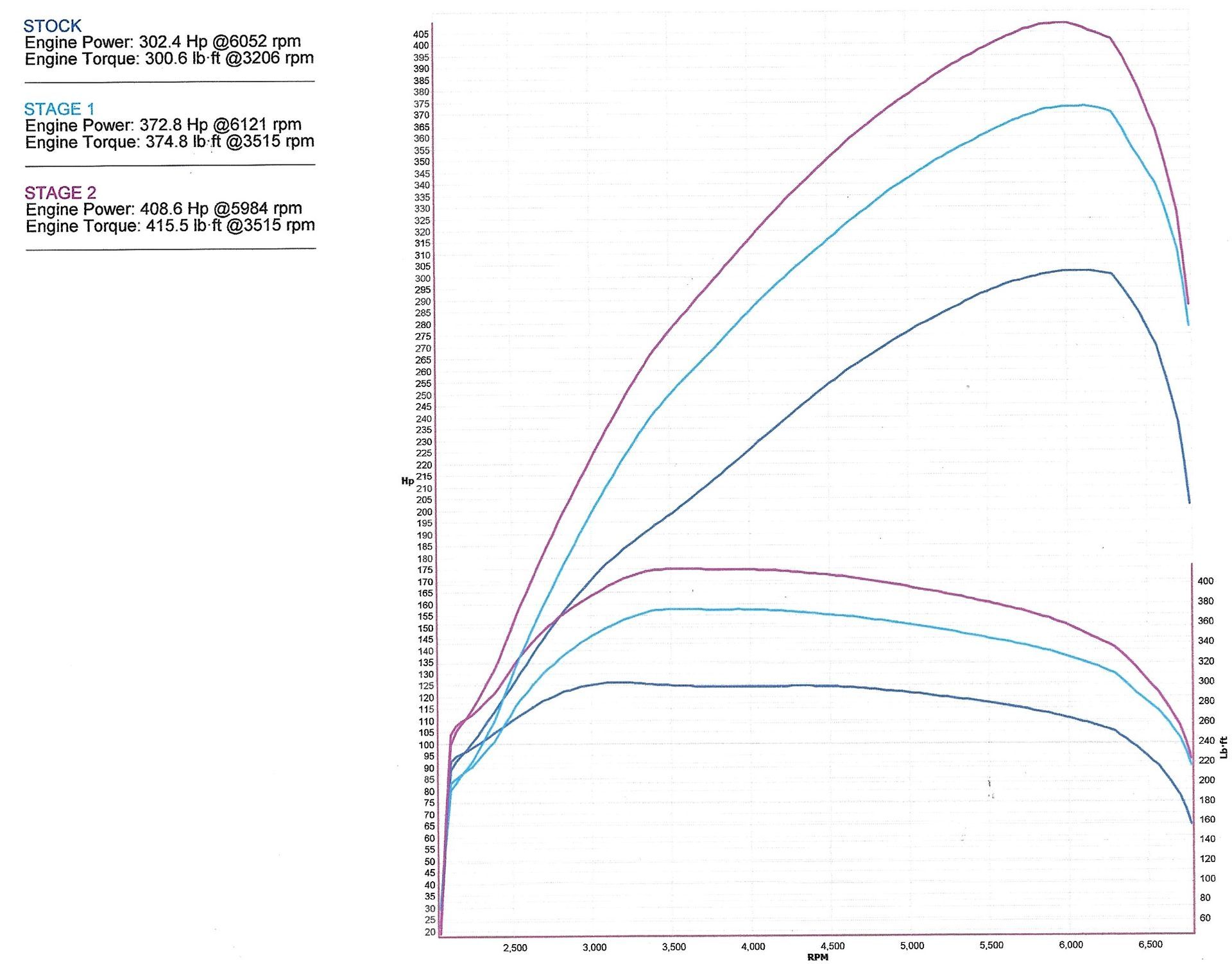

Here we show a great example of stage 1 & 2 taking place on a very healthy example of the EA888 TSI IS38 variant engine. This was an excellent example of a MK7 Golf R brought to us from stock and covering over various hardware and tuning stages. The graph defines what we have achieved within stages 1 & 2.
Stock:
302BHP & 300Ftlb (406NM)
Stage 1 Calibration:
372BHP & 374Ftlb (507NM)
Stage 2 Calibration:
408BHP & 415Ftlb (562NM)
Please note we have run stage 1 & 2 calibrations on these engines on stock clutch with zero slip. Please use your own discretion on the condition of your clutch prior to tuning. A stock clutch in healthy condition will be fine for both stages of tuning but will eventually need replacing for stage 2 calibrations depending on your driving style.
